Available Models - Single-Rotor rakes
| Model | Mounting category | Working Width (m) | Tine arms per rotor | Power demand (HP) | PTO (rpm) |
|---|---|---|---|---|---|
| MF RK 341 DN | Cat I and II | 3.40 | 8 | 23 | 540 |
| MF RK 361 DN | Cat I and II | 3.60 | 10 | 27 | 540 |
| MF RK 421 DN | Cat I and II | 4.20 | 12 | 41 | 540 |
| MF RK 451 DN | Drawbar | 4.20 | 12 | 41 | 540 |
| MF RK 450 DN | Cat I and II | 4.50 | 12 | 41 | 540 |
Available Models - Two Rotor Side Swath Delivery
| Model | Mounting category | Working Width (m) | Tine arms per rotor | Power demand (HP) | PTO (rpm) |
|---|---|---|---|---|---|
| MF RK 702 SDX-TR | Trailed | 6.3 - 7.00 | 12 | 45 | 540 |
| MF RK 772 SD-TRC | Cat I and II | 6.60 - 7.70 | 12 | 41 | 540 |
| MF RK 842 SD-TRC PRO | Cat II | 7.80 - 8.40 | 13 | 60 | 540 |
| MF RK 762 TRC | Cat II | 6.80 - 7.60 | 12 | 41 | 540 |
Available Models - Two Rotor Centre Swath Delivery
| Model | Mounting category | Working Width (m) | Tine arms per rotor | Power demand (HP) | PTO (rpm) |
|---|---|---|---|---|---|
| MF RK 662 TRC | Cat I and II | 5.80 - 6.60 | 10 | 26 | 540 |
| MF RK 762 TRC | Cat II | 6.80 - 7.60 | 12 | 41 | 540 |
| MF RK.862 TRC | Cat II | 7.60 - 8.60 | 13 | 60 | 540 |
| MF RK.862 TRC PRO | Cat II | 7.60 - 8.60 | 13 | 60 | 540 |
| MF RK.922 TRC | Cat II | 8.00 - 9.20 | 14 | 70 | 540 |
| MF RK.922 TRC PRO | Cat II | 8.00 - 9.20 | 14 | 70 | 540 |
| MF RK 1002 TRC PRO | Cat II | 8.80 - 10.00 | 15 | 80 | 540 |

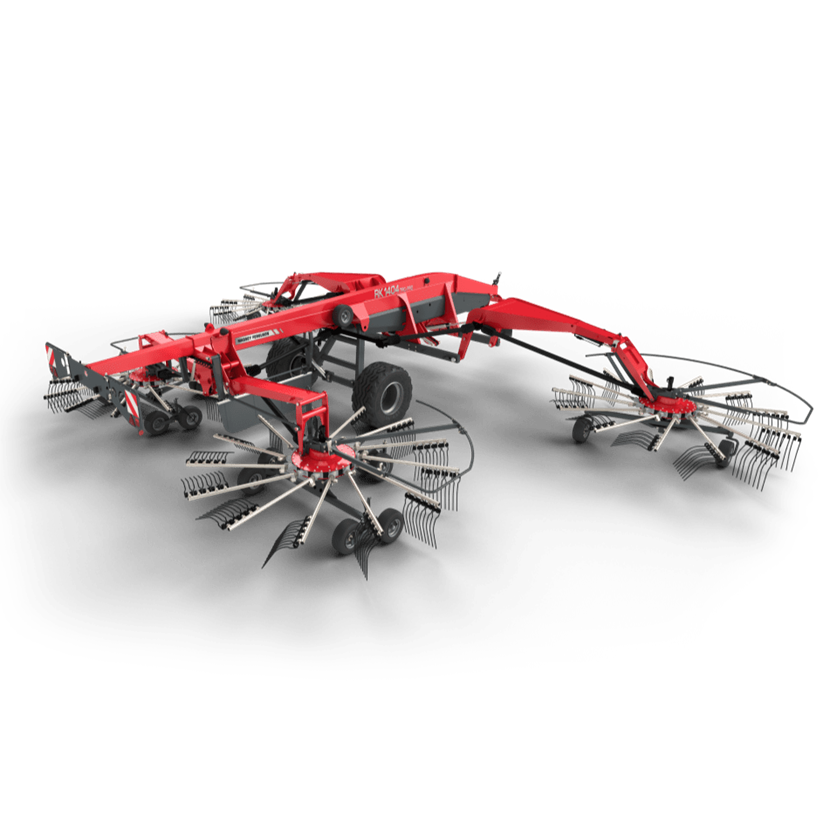

Available Models - Four Rotor Rakes
| Model | Mounting category | Working Width (m) | Tine arms per rotor | Power demand (HP) | PTO (rpm) |
|---|---|---|---|---|---|
| MF RK 1254 TRC | Cat II | 12.50 | 12 | 80 | 540 |
From skilled labor shortages to unpredictable weather and the demand for higher-quality hay, these rakes are designed to help hay producers achieve better results through greater forage quality and increased field performance—helping you tackle inefficiencies and produce superior results.
